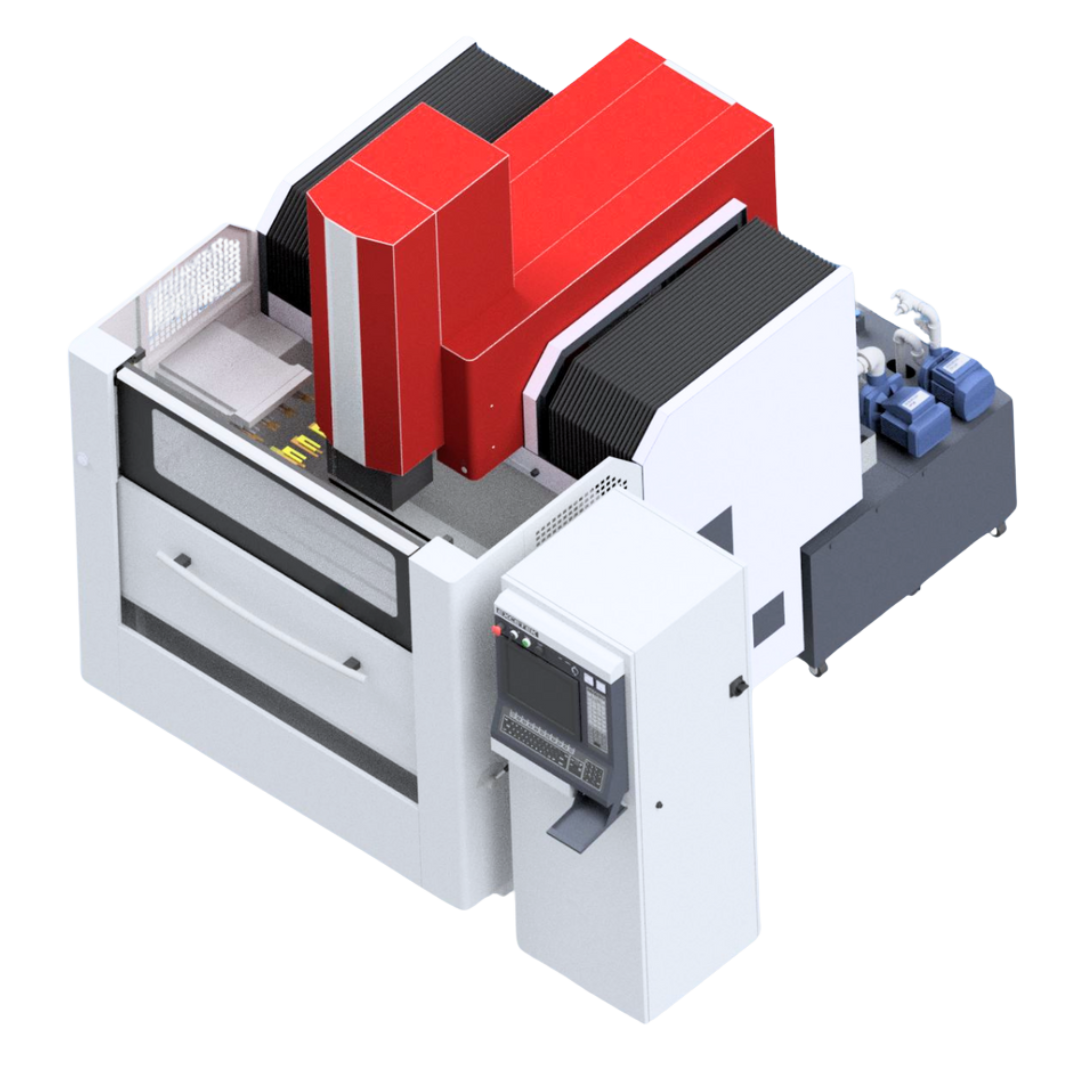

Precision & stability through robust design.
The static, dynamic and rigid mechanical construction ensures consistently stable operation with high performance. Linear glass scales in X, Y and Z enable precise position detection and reduce measurement errors to a minimum.
Compact & rigid mechanical concept.
The short C frame design combined with generously dimensioned cast components ensures mechanical stability and precision throughout the entire service life of the machine. Thanks to its high robustness, the construction absorbs all machining forces and thus ensures a consistently precise spark gap between workpiece and electrode.
Features at a glance:
- Manual eroding for spark initiation via handheld control with joystick function
- High vibration damping thanks to stable cast construction
- Maximum removal rate and accuracy across all material combinations
- Low wear final dimension tuning
- Fully encapsulated integrated measuring systems
- Fully integrated work area lighting
- Automatic central lubrication
ZK 400 NOVA
| Inside dimensions working tank | |
|---|---|
| Volume working tank | approx. 1300 l |
| Table size X–Y | 850 x 1400 mm |
| Total weight | approx. 9000 kg |
| Machine length x width (without storage tank) |
approx. 2800 x 2600 mm |
| Height working table | approx. 1200 mm |
| Travel distance X – Y | 1500 x 1250 mm |
| Moving speed X und Y | approx. 250 mm/s bzw. 15 m/min |
| Travel distance Z | 950 mm |
| Moving speed Z | approx. 330 mm/s bzw. 20 m/min |
| Distance table – sleeve (without chuck) |
1000 mm |
| Max. workpiece weight | 5.000 kg |
| Max. electrode weight | 500 kg (without C-Rotation) |
| Dielectric fluid above table | 700 mm (optional 1000 mm) |
ZK 650 NOVA
| Inside dimensions working tank | 2500 x 1600 x 1000 mm |
|---|---|
| Volume working tank | approx. 4000 l |
| Table size X–Y | 2300 x 1400 mm |
| Total weight | approx. 16000 kg |
| Machine length x width (without storage tank) |
approx. 4300 x 2600 mm |
| Height working table | approx. 1200 mm |
| Travel distance X – Y | 2900 x 1250 mm |
| Moving speed X und Y | approx. 250 mm/s resp. 15 m/min |
| Travel distance Z | 950 mm |
| Moving speed Z | approx. 330 mm/s resp. 20 m/min |
| Distance table – sleeve (without chuck) |
1000 mm |
| Max. workpiece weight | 10.000 kg |
| Max. electrode weight | 500 kg (without C-Rotation) |
| Dielectric fluid above table | 750 mm (optional 1000 mm) |
Technical changes reserved.

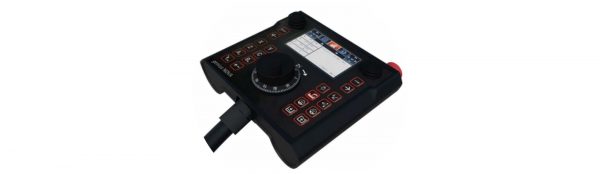

NOVA handheld control unit
Details
- Ergonomically designed
- Two enabling switches for left and right handed operation
- Large LCD display
- Digital handwheel for manual target positioning
- Fully integrated 4 axis joystick control
